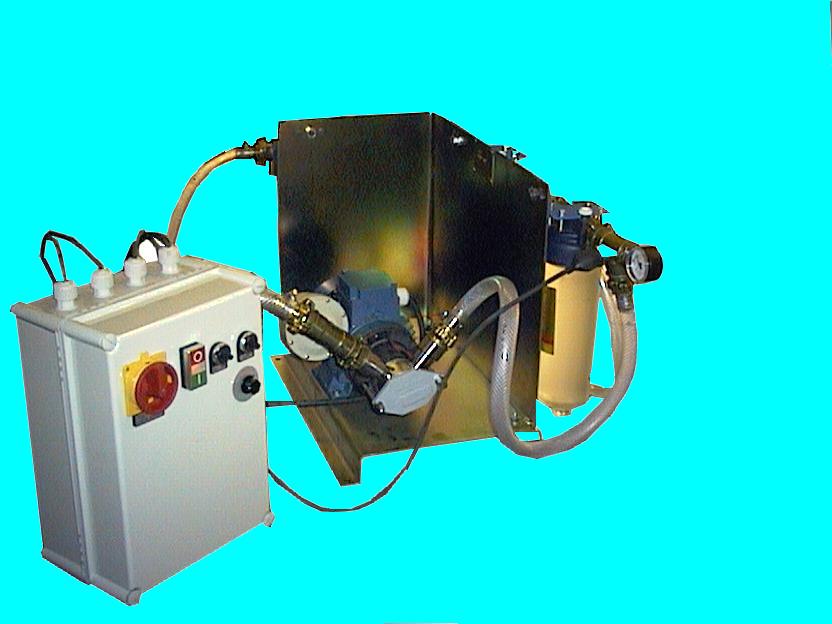

Motor:

0,55 kw phase, enclosure IP 55 dust and waterproof,
EEXE extended security. Gas class 1. Teperature class
T1 1400 r/m at 50 Hz.

Frequency converter:

Fitted in electric cabinet. Gradual start. Motor protection.
Variable speed control 500 - 1400 r/m.

Elektric cabinet:

Enclosure class IP 65 dustproof and waterproof.

Power supply:

220 Volt 10Amp, single phase. 50/60 Hz
Ready to use with the touch of a button.

Pump:

Johnson Pump F70 S2-1. Acid proof steel, impellerpump,
nitril rubbery impeller for vegetable oils. Oil temperature
-15 to +85 C.

Cleaning:

Easy to dismantle. Only two wing nuts to be removed
in order to ready housing for cleaning. Back-rise.

Pump-guard:

Johnson Pump Guard PV-1. Protects the pump at dry operations.

High-pressure-guard:

Protects the pump from stop up in filter.

Filter house:

3 piece polycarbonate: clear 1N1-Mc 360 mms.

Filter:

1 piece coarse filter of 50 micron 248 mm of stainless steel.
1piece fine filter cotton 25 micron and 1 piece fine
filter cotton 5 microne. Grade of Filtration can be
ordered. Any of the filters can be engaged.

Capacity:

The oil must be settled before filtration. No filtration direct from
the press
,
there is to much sediment, the filter would be stopped.
Example: Only pumping of rape seed oil +14 C no filtered at approx
1500 litres per hour. Filtration 40 micron at +12 C rape seed oil approx
850 litres  per hour. Filtration 40 micron - 25 micron at +14 C rape seed oil 300
litres per hour. The capacity will increase with higer temperature
of the oil.
Measurement about. Length: 700 mm. High: 500 mm. Width: 500 mm. Mounting Plate L 580 W 390 H 455 mm. Weight without electric cabinet: 57 Kg.
Electrical cabinet (L*W*H): 300*230*400 mm.Weight 14 kg.
Moms Moms tillkommer på alla priser i Sverige 25%    Call my dealers  for pricing

   Sparepart list, Manual, Type F70S        Prospectus.eng     Broschyr sv    To get Acrobat Reader for PDF
Plant

Dealers
Terms of sales
Advantages Oilpress *Type 55 Bauer , Type70 and Type90
Guarantee
Garantivillkor
Rape-oil for  diesel-engine. ECO-Tuning of  diesel-engine, car and tractor.
Length: 700 mm. High: 500 mm. Width: 500 mm. Weight without electric cabinet: 57 Kg.
Electrical cabinet (L*W*H): 300*230*400 mm.Weight 14 kg.

We reserve the right to make changes to technical data and design without prior notifications.
Guarentee: 12 months exception the filter elements.
The price to date 2009. Price ex works Örebro, Sweden, unpacked    USD DM EURO
Currency Converter  Price to USD and other.
Request an offer, price, freight, and date of delivery.      Begär pris , frakt, levtid.
