                     OIL-PRESS
.




https://www.youtube.com/watch?v=C9_qxDrezE4 Type 40C  Good Test GFE


VIDEO: Type 40A-2 "NEW" kit for older Type40A to get 2 press in the same oil press.  Now for sale.





VIDEO:  From Skeppsta Maskin AB

YouTube

Myspace


Screw presses for cold pressing RAPESEED, LINSEED, FLAXSEED, SUNFLOWER SEED, SESAME SEED, PEANUT, GROUNDNUTS, MUSTARD SEED, POPPY, COTTON SEED, HEMP, RAPSSAAT, SENF, MOUTARDE, GRAINES DE TOURNESOL, COLZA, SONNENBLUMENKERNE, CHANVRE, ARACHIDE, JOJOBA  etc. The ideal press for everybody who intends to produce oil, edible oil, tractor oil, chain saw oil, biodiesel, Rapsöl, RME, Pflanzenöl, hemp seed oil, health food, Reformkost etc.You can choose different models of presses. Manufactured by concentrating on reliability, durability, low weight, easy serviceability, simple power supply and a low price.

* Extruded meal, perfect for Feed or Fuel  * Operate 24/7   * Simple operation  *

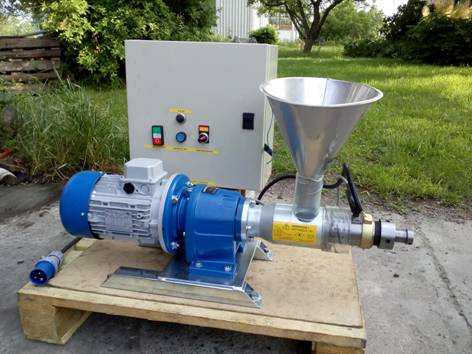

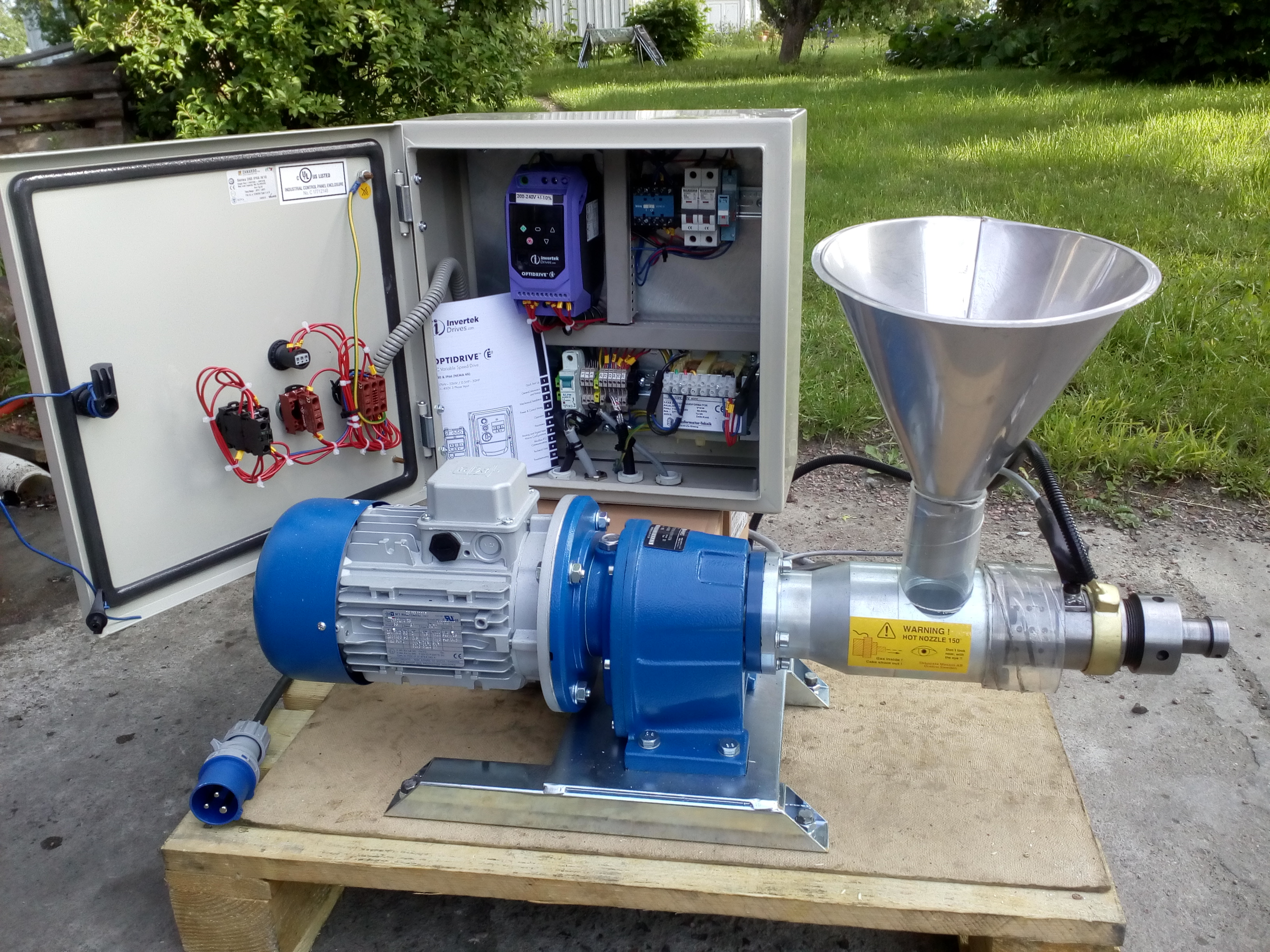

Type 40C      Motor  3 phase,   Power converter  1 phase Electric motor MT

1,5 Kw  Power converter 1 Phase



Varmec gearbox  Varmec RCV 252  gearbox   and Moeller 322  inverter. or Invertek inverter  Manual IP20 Inverter
 Power supply   Ready to use with the touch of a button.

220-240Volt 1 phase 20 amp 50/60 Hz  Plugged into a socket outlet.



AC Variable Speed Drive  Auto stop overload . Back run.

 Hours run  & kwh Amp Hz meters



Capacity litres: approx  Dependent on the condition of the seed.

2 - 8 liter / hour
 0.528 - 2.112 Gallon / hour



Test of seed result.
Extraction % OIL: approx
Dependent on the condition of the seed.

25 - 37%



Capacity kg seed / hour approx:

8 - 16 kg seed
17.6 - 35.2 Pound  seed / hour



Oilproduktion 12 month 8760 hour :In a year oil production: Translate to gallon

17 - 35 m3  / 106.7 - 219.8 Barrel



Length mm

970 mm  (Varmec gearbox 820 mm)



Width mm

260 mm



Mounting plate

 400 x 260 mm



Height without filling hopper inlet funnel mm

300 mm



Weight press kg

46 kg



Weight electric cabinet kg

21 kg



Electric cabinet (L*W*H) mm

400*400*200



Frequency converter

Yes















Price Sparepart press-screw  2 kg

1700:-SEK



Price Sparepart press-tube  2 kg

2300:-SEK




New Type 40C 220-240 volt 50/60 Hz 1 Phase. Now with variable speed drive. Click here

Sparepart list, Manual, Type 40A            Prospectus      Oilpress-comparison       To get Acrobat Reader for PDF Currency Converter  Price to USD and other.
Seed cookie guard   Plant
Rape-oil for  diesel-engine. ECO-Tuning of  diesel-engine, car and tracto
Retail dealers of Oilpress TäbyPress.
Terms of sales
Guarantee
Advantages *Type 55 Bauer , Type70 and Type90
BRANDSÄKERHET VID OLJEPRESSNING
Garantivillkor
Broschyr Svensk
Adresser kontakter. Tillsatser, dunkar, silos, frö
Försäljningsvillkor
Garantivillkor
Fördelar för TäbyPressen Type 40 Typ 55 . 70, 90Bauer
Frökakevakt som stoppar om något går fel

Raps diesel konvertering SVO
SVO Straight Vegetable Oil , Diesel Conversion Kit

The price do not include V.A.T. (Value-added tax)


Gear drive in oil bath for continuous operation. Hardened steel in press tools. Manual starting is required after a power failure. Motor protection. Automatic cut-out if press screw overheats. Startwarmthcollar. Prepared for oxygenfree pressing. Interchangeable nozzles, tools and instruction manual supplied. We reserve the right to make changes to technical data and design without prior notifications.
Skeppsta Maskin AB manufactured also oil-cleaning filter
TäbyFilter Type F70 S2-1
Request an offer, price, freight, and date of delivery.      Begär pris , frakt, levtid.
Skeppsta Maskin AB
Bengt Jonsson
Täby Skeppsta
S-705 94 ÖREBRO
SWEDEN
Tel: +46-19 22 80 05 Fax: +46-19 22 80 05




Greeting/Hälsning Bengt Jonsson
